Product introduction:

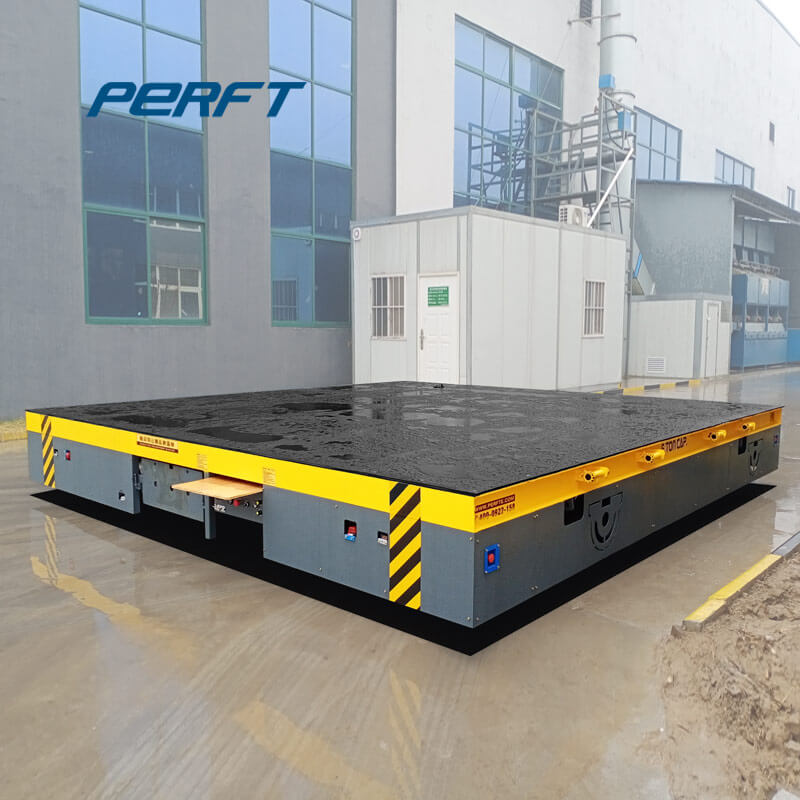

This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another.
Features of motorized transfer handling vehiclet :
1.The series flat car has adjustable speed, saves transportation time and is easy to operate by wireless remote control.
2.The components adopt Chinese military grade components and can also be matched with Siemens and other partner components.
3.The trackless transfer vehicle on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.
| Model | BWP-2T | BWP-50T | BWP-150T | |
| Rated load (T) | 2 | 50 | 150 | |
| Table size | length(L) | 2000 | 5500 | 10000 |
| Width(W) | 1500 | 2500 | 3000 | |
| Height(H) | 450 | 650 | 1200 | |
| Wheel Base (mm) | 1200 | 4200 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ500 | Φ600 | |
| Motor Power (Kw) | 1 | 5 | 15 | |
| Battery Capacity(Ah) | 180 | 330 | 600 | |
| Battery Voltage(V) | 24 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 3.3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 174 | 265.2 | |
